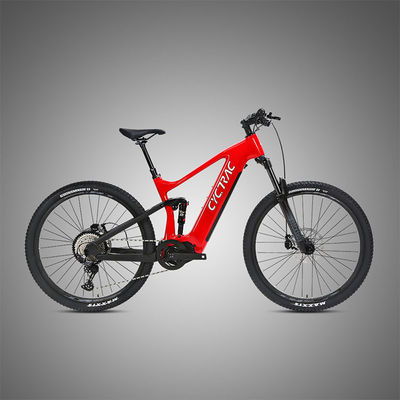

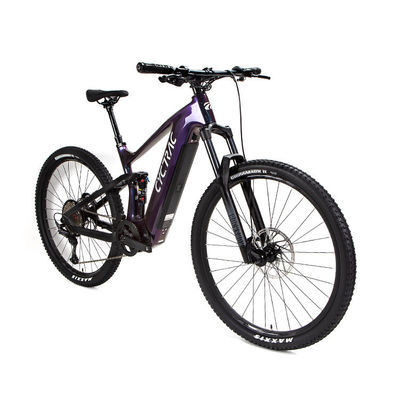

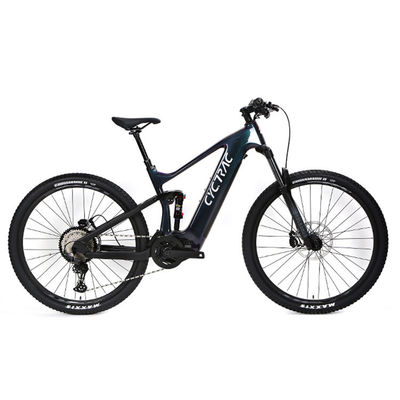

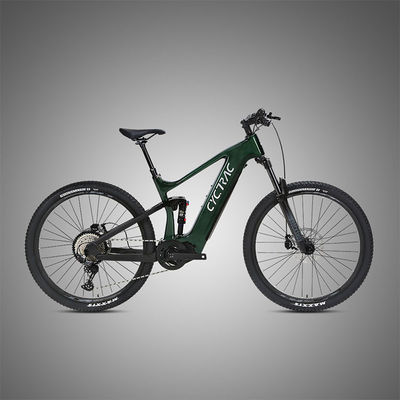

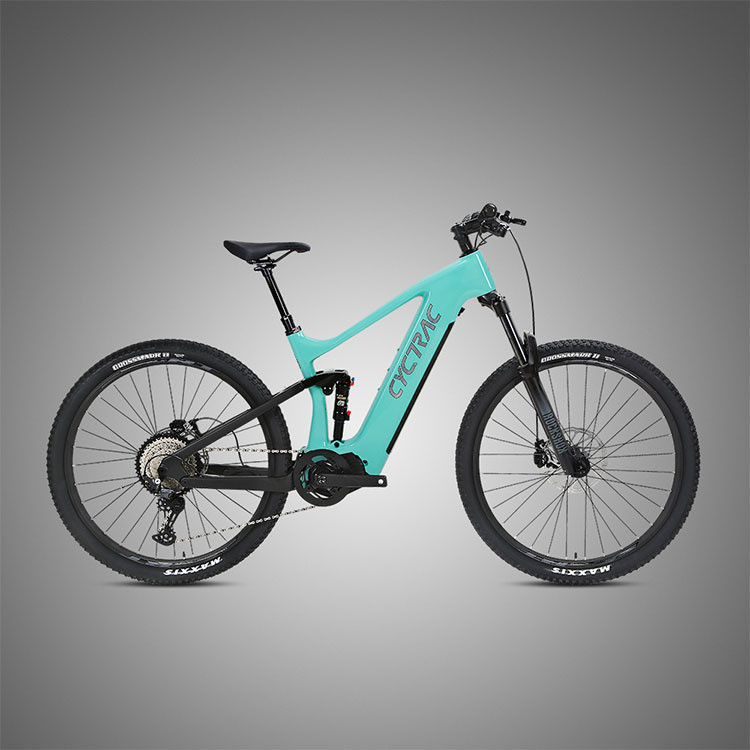

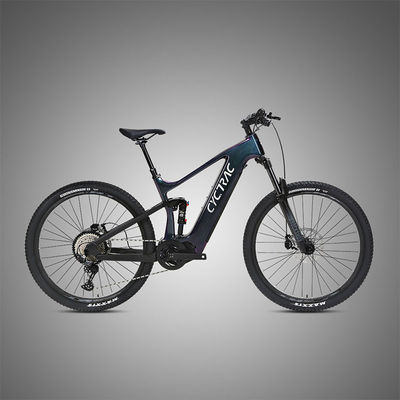

Product Details:
|
| Gears: | 12 Speed | Range Per Power: | 130-150 Km |
|---|---|---|---|
| Frame Material: | Carbon Fibre | Wheel Size: | 29/27.5 2.25 |
| Max Speed: | 30-50Km/h | Voltage: | 48V |
| Power Supply: | 48V10Ah Lithium Battery | Braking System: | Hydraulic Disc Brake (Hydraulic Brake Pad) |
| Motor Position: | Central Motor | Battery Position: | REMOVABLE BATTERY |
| Battery Capacity: | 15AH | Smart Type: | Electronic |
| Product Name: | EM10 | Frame Size: | 29(27.5)17" |
| Net Weight: | 24.7KG | Derailleur Lever: | SHIMANO DEORE/M6100-12S |
| Rear Derailleur: | SHIMANO DEORE/M6100-12S | Cranksets: | Matching With Mid Motor, 38T |
| Cassettes: | SUNSHINE-12S,11-50T | Spoke: | SHUNJIU, Circular 14G |
| Logo: | Customized Logo | Color: | Customized Color |
| Highlight: | EM10 Electric Assistant Bike,12 Speed Gears Electric Assistant Bike,Midmotor Rear Shox Electric Assistant Bike |
||
|
Frame
|
CYCTRAC, EM10, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,140mm Travel, DNM rear shox200*55,Gloss+UV laser
decals |
|
Handelbar Sets
|
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm
|
|
Seat post
|
KS adjustable lifting with hydraulic, Remote,31.6**395*125mm
|
|
Fork
|
ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 Boost
|
|
Head Sets
|
Alu alloy CNC with sealed Bearings 52*52mm
|
|
Derailleur Lever
|
SHIMANO DEORE/M6100-12S
|
|
Rear Derailleur
|
SHIMANO DEORE/M6100-12S
|
|
Cranksets
|
Matching with Mid Motor, 38T
|
|
Cassettes
|
SUNSHINE-12S,11-50T
|
|
Chain
|
SUMC-12S
|
|
Brake
|
RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm
|
|
Hub
|
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
|
