Product Details:
|
| Gears: | 12 Speed | Range Per Power: | 60-80 Km |
|---|---|---|---|
| Frame Material: | Carbon Fibre | Wheel Size: | 29/27.5 2.25 |
| Max Speed: | 30-50Km/h | Voltage: | 48V |
| Power Supply: | 48V13Ah Lithium Battery | Braking System: | Hydraulic Disc Brake (Hydraulic Brake Pad) |
| Motor Position: | Central Motor | Battery Position: | REMOVABLE BATTERY |
| Battery Capacity: | 13AH | Smart Type: | Electronic |
| Product Name: | EM8 | Frame Size: | 29(27.5) 17" / 19" |
| Net Weight: | 20.1KG | Derailleur Lever: | SHIMANO DEORE/M6100-12S |
| Rear Derailleur: | SHIMANO DEORE/M6100-12S | Cranksets: | Matching With Mid Motor, 38T |
| Chain: | SUMC-12S | Spoke: | SHUNJIU, Circular 14G |
| Logo: | Customized Logo | Color: | Customized Color |
| Highlight: | 48V 13Ah Lithium Battery Electric Bike,Remote Control Electric Bike,Mid Drive Electric Bike |
||
|
Frame
|
CYCTRAC,EM8, High modulus Carbon fiber, XC, Inner cables, Thru-axle12*148 Boost, Gloss+UV laser decals
|
|
|
||
|
Handelbar Sets
|
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Seat post 31.6×350mm,Clamps 34.9mm QR
|
|
|
||
|
Fork
|
RS, MgAl alloy, Air suspension,Remote, Thru-axle 15*110mm Boost
|
|
|
||
|
Head Sets
|
Alu alloy CNC with sealed Bearings 52*52mm
|
|
|
||
|

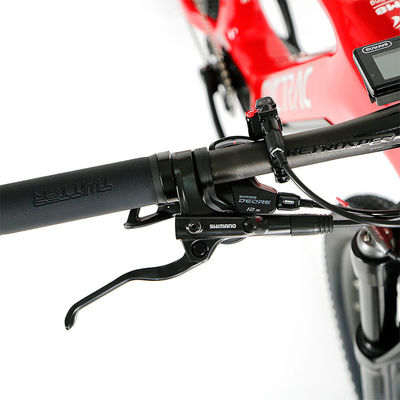

Derailleur Lever
|
SHIMANO DEORE/M6100-12S
|
|
|
||
|

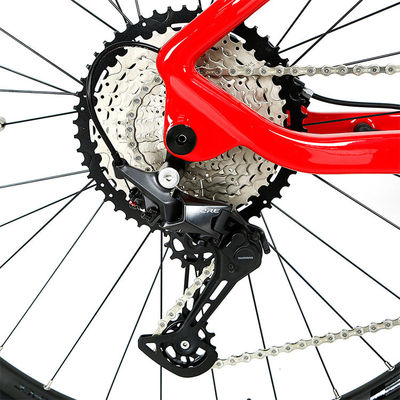

Rear Derailleur
|
SHIMANO DEORE/M6100-12S
|
|
|
||
|

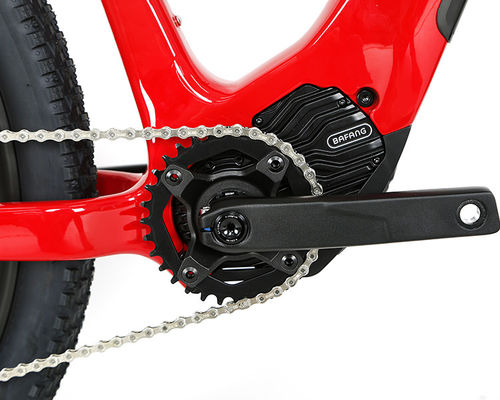

Cranksets
|
Matching with Mid Motor, 38T
|
|
|
||
|
Cassettes
|
SUNSHINE-12S,11-50T
|
|
|
||
|
Chain
|
SUMC-12S
|
|
|
||
|
Brake
|
SHIMANO MT200 hydraulic disc brake,180/180mm
|
|
|
||
|
Hub
|
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
|
|
|
||
|
Rim
|
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
|
|
|
||
